Manganin Resistance Wire – Precision Alloy for Stable Electrical Performance
- Product Details

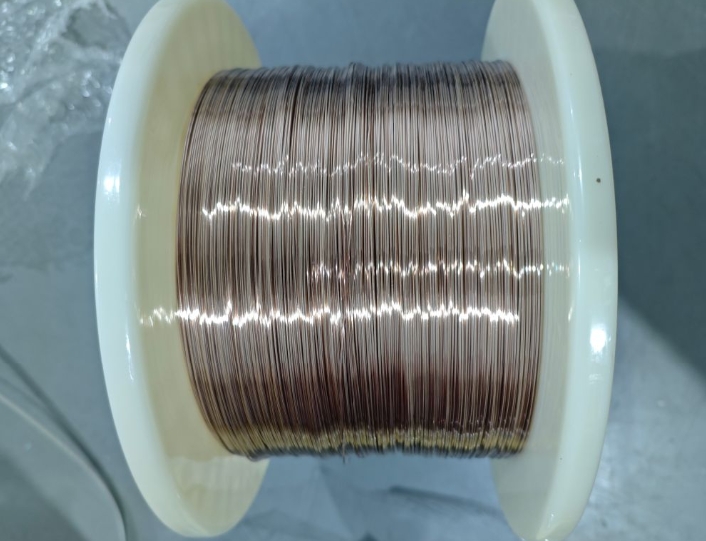

Manganin Resistance Wire – Precision Alloy for Stable Electrical Performance
(Including Grades 6J13 / 6J8 / 6J12)
Introduction:
Manganin wire is a specialized copper-manganese-nickel alloy renowned for its extremely stable electrical resistance and low temperature coefficient of resistance (TCR).
It is widely used in precision electrical applications where high accuracy, long-term stability, and minimal thermal drift are essential.
Grades such as 6J13, 6J8, and 6J12 represent variations of Manganin alloy, each optimized to meet different technical demands.
Key Features:
Ultra-Stable Resistivity: Very little change in resistance with temperature or time.
Low TCR: Guarantees consistent performance in varying thermal conditions.
Excellent Long-Term Stability: Ideal for precision instruments and metrology applications.
Good Corrosion Resistance: Reliable performance in humid and harsh environments.
Good Solderability and Workability: Easy to process into wires, ribbons, and foils.
Applications:
Precision resistors
Standard resistors for laboratories
Shunt resistors for current measurement
Electrical measuring instruments
Strain gauges
Precision compensation components
Technical Data Sheet
| Property | 6J13 | 6J8 | 6J12 |
|---|---|---|---|
| Main Composition | Cu 84%, Mn 12%, Ni 4% | Cu 86%, Mn 12%, Ni 2% | Cu 84%, Mn 13%, Ni 3% |
| Electrical Resistivity (20°C) | ~0.43–0.47 μΩ·m | ~0.48–0.52 μΩ·m | ~0.45–0.49 μΩ·m |
| Temperature Coefficient of Resistance (TCR) (20°C–50°C) | ≤ ±15 ppm/°C | ≤ ±20 ppm/°C | ≤ ±20 ppm/°C |
| Density | ~8.4 g/cm³ | ~8.5 g/cm³ | ~8.4 g/cm³ |
| Melting Point | ~960–980°C | ~960–980°C | ~960–980°C |
| Maximum Working Temperature | ~120°C–150°C | ~120°C–150°C | ~120°C–150°C |
| Tensile Strength | >400 MPa | >400 MPa | >400 MPa |
Why Choose Manganin Wire from DLX ALLOY?
At DLX ALLOY, we offer high-purity Manganin wire (grades 6J13, 6J8, 6J12) manufactured to strict standards, ensuring exceptional stability and performance.
Our Manganin products are available in a wide range of diameters, coils, and custom lengths to meet diverse customer requirements.
We guarantee:
High consistency batch-to-batch
Competitive pricing
Fast delivery and excellent technical support
For customers seeking precision, reliability, and high-quality materials, our Manganin resistance alloys are the ultimate choice.
👉 Contact us today for detailed specifications, samples, and quotation!
